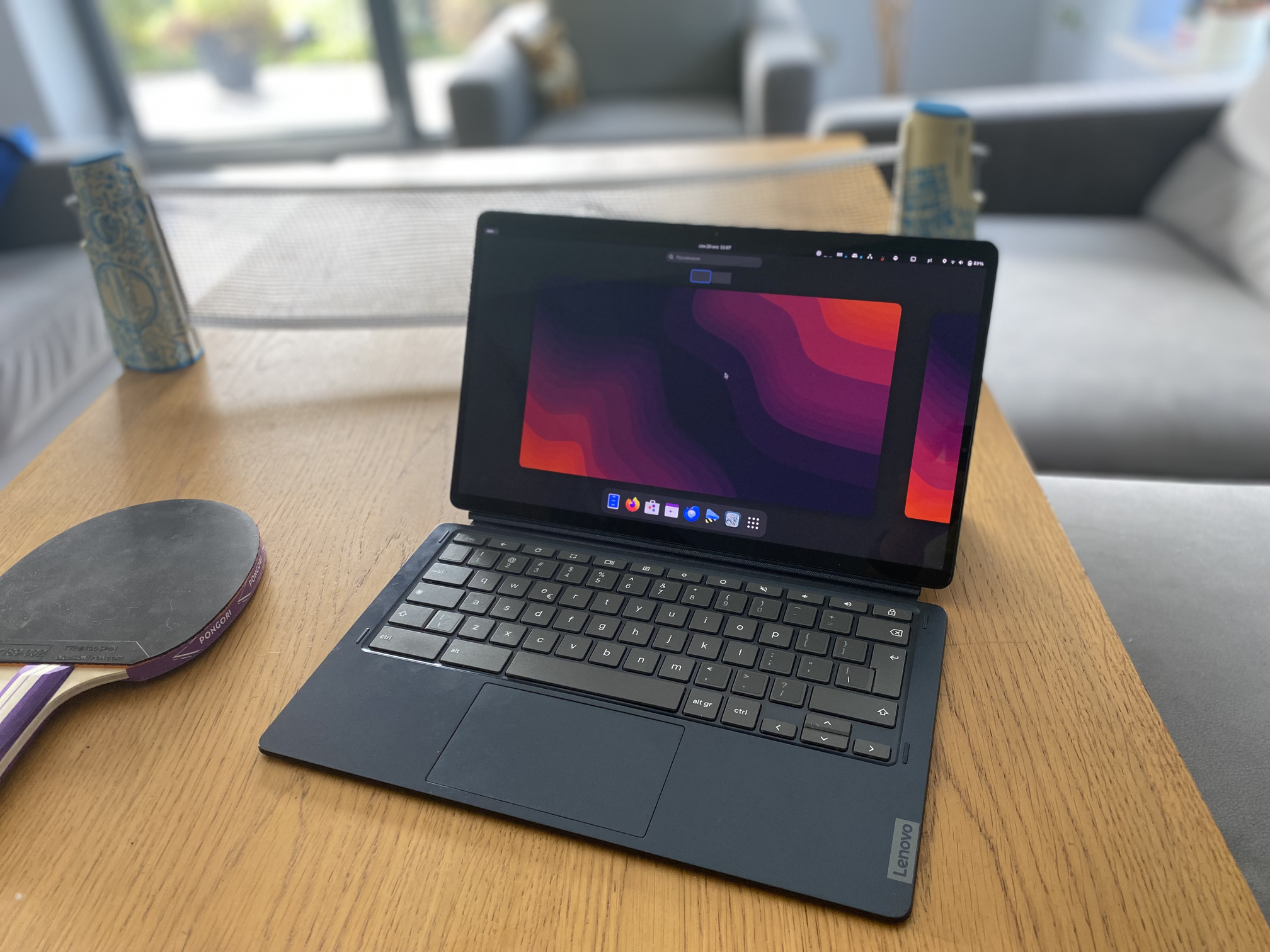

this is homestar and by default on debian its audio is not working
while someone managed to find "a solution" it doesn't seam to be reproducible
there is temporary solution that makes only speakers on one side work
after looking at this i figured out a solution
luk@backluk:~$ diff /usr/share/alsa/ucm2/Qualcomm/sc7180/rt5682-max98357a/HiFi.conf ~/Pobrane/HiFi.conf
13c13
< PlaybackChannels 2 <- broken
---
> PlaybackChannels 4 <- works
just put HiFi.conf in /usr/share/alsa/ucm2/Qualcomm/sc7180/rt5682-max98357a/HiFi.conf
file content
# Use case configuration for ALC5682+MAX98357A on SC7180
SectionVerb {
Value {
TQ "HiFi"
}
}
SectionDevice."Speaker" {
Comment "Speaker"
Value {
PlaybackChannels 4
PlaybackPCM "hw:${CardId},1"
PlaybackPriority 100
PlaybackMixerElem "Speaker"
PlaybackVolume "Speaker Playback Volume"
}
}
SectionDevice."Headphones" {
Comment "Headphones"
EnableSequence [
cset "name='HPOL Playback Switch' 1"
cset "name='HPOR Playback Switch' 1"
cset "name='Stereo1 DAC MIXL DAC L1 Switch' 1"
cset "name='Stereo1 DAC MIXR DAC R1 Switch' 1"
]
DisableSequence [
cset "name='HPOL Playback Switch' 0"
cset "name='HPOR Playback Switch' 0"
cset "name='Stereo1 DAC MIXL DAC L1 Switch' 0"
cset "name='Stereo1 DAC MIXR DAC R1 Switch' 0"
]
Value {
PlaybackPCM "hw:${CardId},0"
PlaybackPriority 200
PlaybackMasterElem "DAC1"
PlaybackMixerElem "Headphone"
PlaybackVolume "Headphone Playback Volume"
}
}
SectionDevice."Mic" {
Comment "Internal Microphone"
ConflictingDevice [
"Headset"
]
EnableSequence [
cset "name='IF1 01 ADC Swap Mux' 1"
cset "name='Stereo1 ADC L2 Mux' 1"
cset "name='Stereo1 ADC R2 Mux' 1"
cset "name='Stereo1 ADC MIXL ADC2 Switch' 1"
cset "name='Stereo1 ADC MIXR ADC2 Switch' 1"
]
DisableSequence [
cset "name='Stereo1 ADC L2 Mux' 0"
cset "name='Stereo1 ADC R2 Mux' 0"
cset "name='Stereo1 ADC MIXL ADC2 Switch' 0"
cset "name='Stereo1 ADC MIXR ADC2 Switch' 0"
]
Value {
CapturePCM "hw:${CardId},0"
CapturePriority 100
CaptureMixerElem "STO1 ADC"
CaptureVolume "STO1 ADC Capture Volume"
}
}
SectionDevice."Headset" {
Comment "Headset Microphone"
EnableSequence [
cset "name='IF1 01 ADC Swap Mux' 2"
cset "name='Stereo1 ADC L1 Mux' 1"
cset "name='Stereo1 ADC R1 Mux' 1"
cset "name='Stereo1 ADC MIXL ADC1 Switch' 1"
cset "name='Stereo1 ADC MIXR ADC1 Switch' 1"
]
DisableSequence [
cset "name='Stereo1 ADC L1 Mux' 0"
cset "name='Stereo1 ADC R1 Mux' 0"
cset "name='Stereo1 ADC MIXL ADC1 Switch' 0"
cset "name='Stereo1 ADC MIXR ADC1 Switch' 0"
]
Value {
CapturePCM "hw:${CardId},0"
CapturePriority 200
CaptureMixerElem "STO1 ADC"
CaptureVolume "STO1 ADC Capture Volume"
}
}

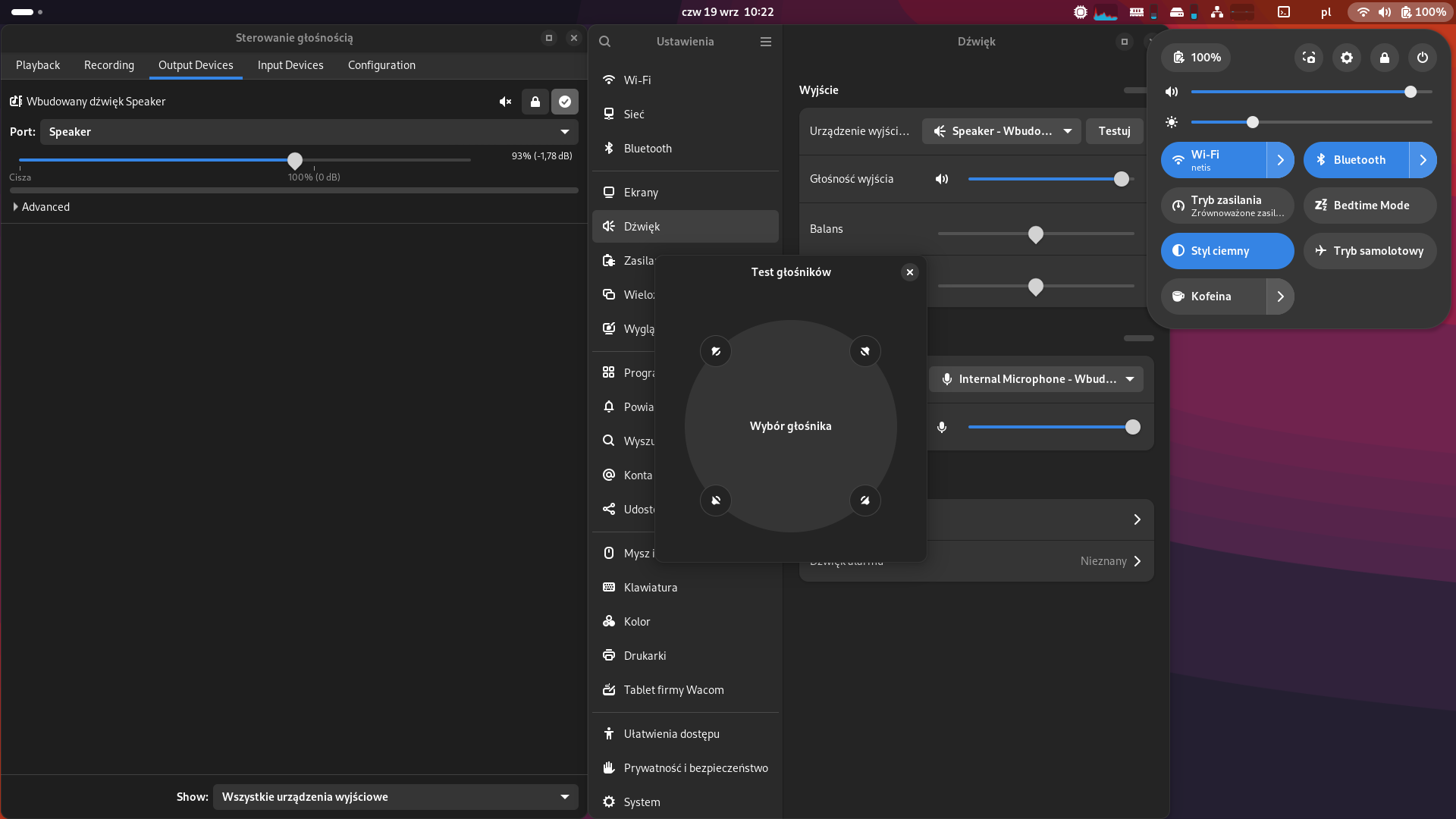

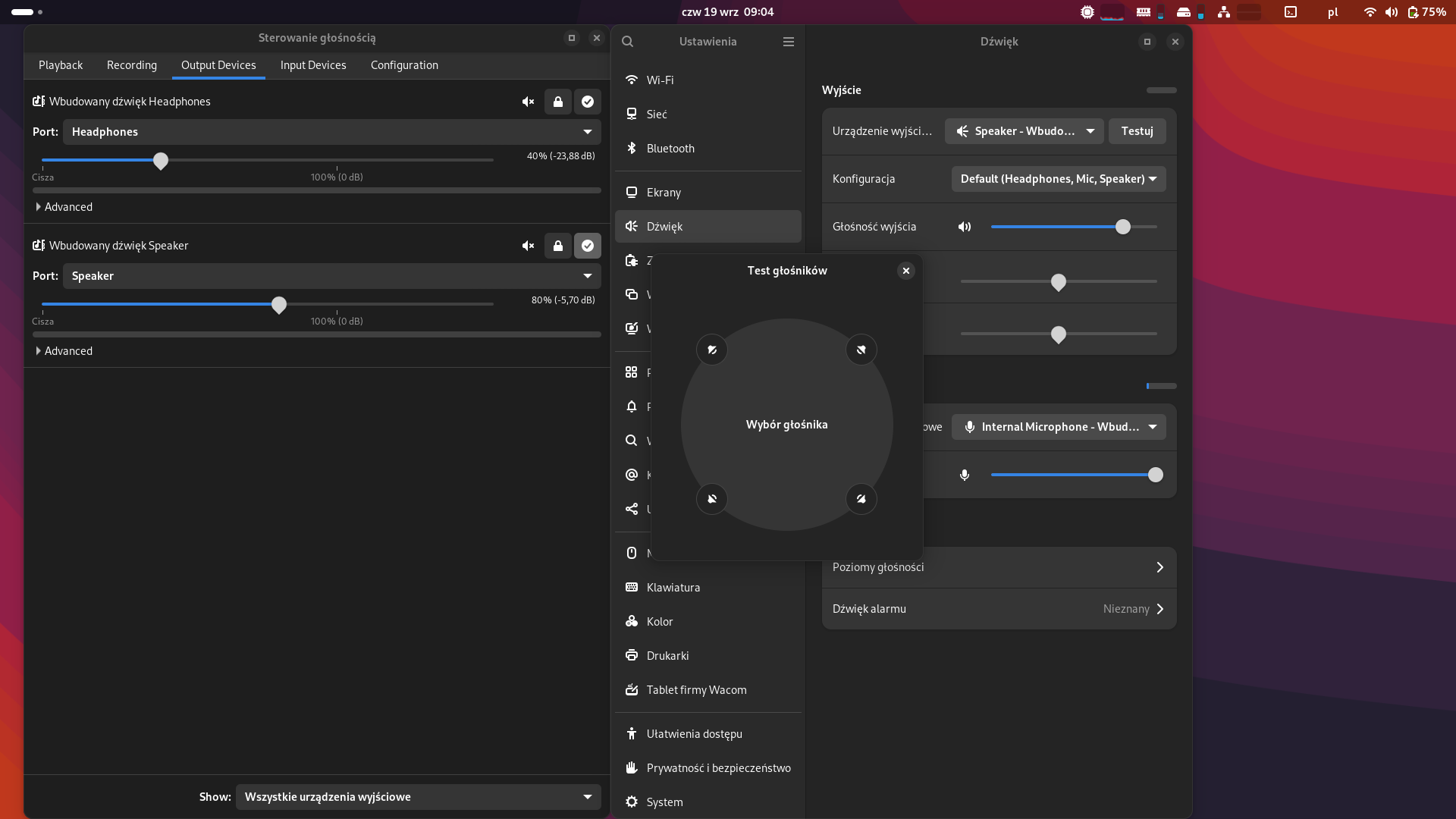

reboot your device and now it works 🥳🥳🥳
but we can go one step further
i figured i might as well as give ya sth from myself to this

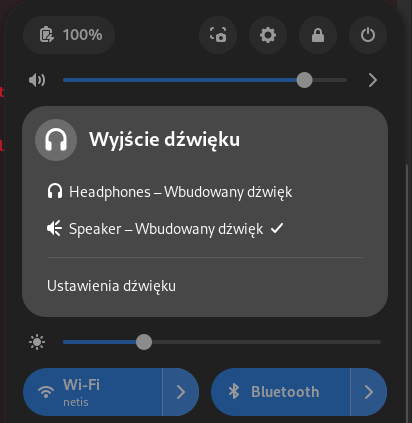

like getting rid of non existing headphones
so i looked at this monster where author just decided to just comment it out
we have a file HiFi.conf.txt (i cannot upload it as just .conf because github)
file content
# Use case configuration for ALC5682+MAX98357A on SC7180
SectionVerb {
Value {
TQ "HiFi"
}
}
SectionDevice."Speaker" {
Comment "Speaker"
Value {
PlaybackChannels 4
PlaybackPCM "hw:${CardId},1"
PlaybackPriority 100
PlaybackMixerElem "Speaker"
PlaybackVolume "Speaker Playback Volume"
}
}
#SectionDevice."Headphones" {
# Comment "Headphones"
#
# EnableSequence [
# cset "name='HPOL Playback Switch' 1"
# cset "name='HPOR Playback Switch' 1"
# cset "name='Stereo1 DAC MIXL DAC L1 Switch' 1"
# cset "name='Stereo1 DAC MIXR DAC R1 Switch' 1"
# ]
#
# DisableSequence [
# cset "name='HPOL Playback Switch' 0"
# cset "name='HPOR Playback Switch' 0"
# cset "name='Stereo1 DAC MIXL DAC L1 Switch' 0"
# cset "name='Stereo1 DAC MIXR DAC R1 Switch' 0"
# ]
#
# Value {
# PlaybackPCM "hw:${CardId},0"
# PlaybackPriority 200
# PlaybackMasterElem "DAC1"
# PlaybackMixerElem "Headphone"
# PlaybackVolume "Headphone Playback Volume"
# }
#}
SectionDevice."Mic" {
Comment "Internal Microphone"
# ConflictingDevice [
# "Headset"
# ]
EnableSequence [
cset "name='IF1 01 ADC Swap Mux' 1"
cset "name='Stereo1 ADC L2 Mux' 1"
cset "name='Stereo1 ADC R2 Mux' 1"
cset "name='Stereo1 ADC MIXL ADC2 Switch' 1"
cset "name='Stereo1 ADC MIXR ADC2 Switch' 1"
]
DisableSequence [
cset "name='Stereo1 ADC L2 Mux' 0"
cset "name='Stereo1 ADC R2 Mux' 0"
cset "name='Stereo1 ADC MIXL ADC2 Switch' 0"
cset "name='Stereo1 ADC MIXR ADC2 Switch' 0"
]
Value {
CapturePCM "hw:${CardId},0"
CapturePriority 100
CaptureMixerElem "STO1 ADC"
CaptureVolume "STO1 ADC Capture Volume"
}
}
#SectionDevice."Headset" {
# Comment "Headset Microphone"
#
# EnableSequence [
# cset "name='IF1 01 ADC Swap Mux' 2"
# cset "name='Stereo1 ADC L1 Mux' 1"
# cset "name='Stereo1 ADC R1 Mux' 1"
# cset "name='Stereo1 ADC MIXL ADC1 Switch' 1"
# cset "name='Stereo1 ADC MIXR ADC1 Switch' 1"
# ]
#
# DisableSequence [
# cset "name='Stereo1 ADC L1 Mux' 0"
# cset "name='Stereo1 ADC R1 Mux' 0"
# cset "name='Stereo1 ADC MIXL ADC1 Switch' 0"
# cset "name='Stereo1 ADC MIXR ADC1 Switch' 0"
# ]
#
# Value {
# CapturePCM "hw:${CardId},0"
# CapturePriority 200
# CaptureMixerElem "STO1 ADC"
# CaptureVolume "STO1 ADC Capture Volume"
# }
#}
again put it here /usr/share/alsa/ucm2/Qualcomm/sc7180/rt5682-max98357a/HiFi.conf ... now reboot
and it works 🎉🎉🎉🎈
we forgot about hdmi
(there is no hdmi port but you can use usb-c to hdmi adapter)
but there is a problem, if we include hdmi in ucm while it's not plugget in there is no audio.
so i have figured out not perfect solution
by conflicting hdmi with speaker we can get it to configure only when available
if we don't do that the ucm doesn't work again (why? idk)
# Use case configuration for ALC5682+MAX98357A on SC7180
SectionVerb {
Value {
TQ "HiFi"
}
}
SectionDevice."Speaker" {
Comment "Speaker"
Value {
PlaybackChannels 4
PlaybackPCM "hw:${CardId},1"
PlaybackPriority 100
PlaybackMixerElem "Speaker"
PlaybackVolume "Speaker Playback Volume"
}
}
SectionDevice."Mic" {
Comment "Internal Microphone"
EnableSequence [
cset "name='IF1 01 ADC Swap Mux' 1"
cset "name='Stereo1 ADC L2 Mux' 1"
cset "name='Stereo1 ADC R2 Mux' 1"
cset "name='Stereo1 ADC MIXL ADC2 Switch' 1"
cset "name='Stereo1 ADC MIXR ADC2 Switch' 1"
]
DisableSequence [
cset "name='Stereo1 ADC L2 Mux' 0"
cset "name='Stereo1 ADC R2 Mux' 0"
cset "name='Stereo1 ADC MIXL ADC2 Switch' 0"
cset "name='Stereo1 ADC MIXR ADC2 Switch' 0"
]
Value {
CapturePCM "hw:${CardId},0"
CapturePriority 100
CaptureMixerElem "STO1 ADC"
CaptureVolume "STO1 ADC Capture Volume"
}
}
SectionDevice."HDMI" {
Comment "HDMI"
#fixes the conflict
ConflictingDevice [
"Speaker"
]
Value {
PlaybackPriority 200
PlaybackPCM "hw:${CardId},2"
JackControl "sc7180-rt5682-max98357a-1mic HDMI Jack"
}
EnableSequence [
]
DisableSequence [
]
}

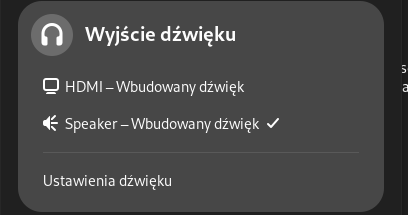

meaning that when you plug in hdmi you just need to run systemctl --user restart pipewire for hdmi to get configured
and after unpluging run again for it to disappear from the device menu
it's not ideal but works
i know that unplugging and plugging in the devices triggers
node hw:0, #9 (0,0,0,HDMI Jack,0) VALUE
in sudo alsactl monitor but i have no idea how to use it
and as long as it works it's fine
